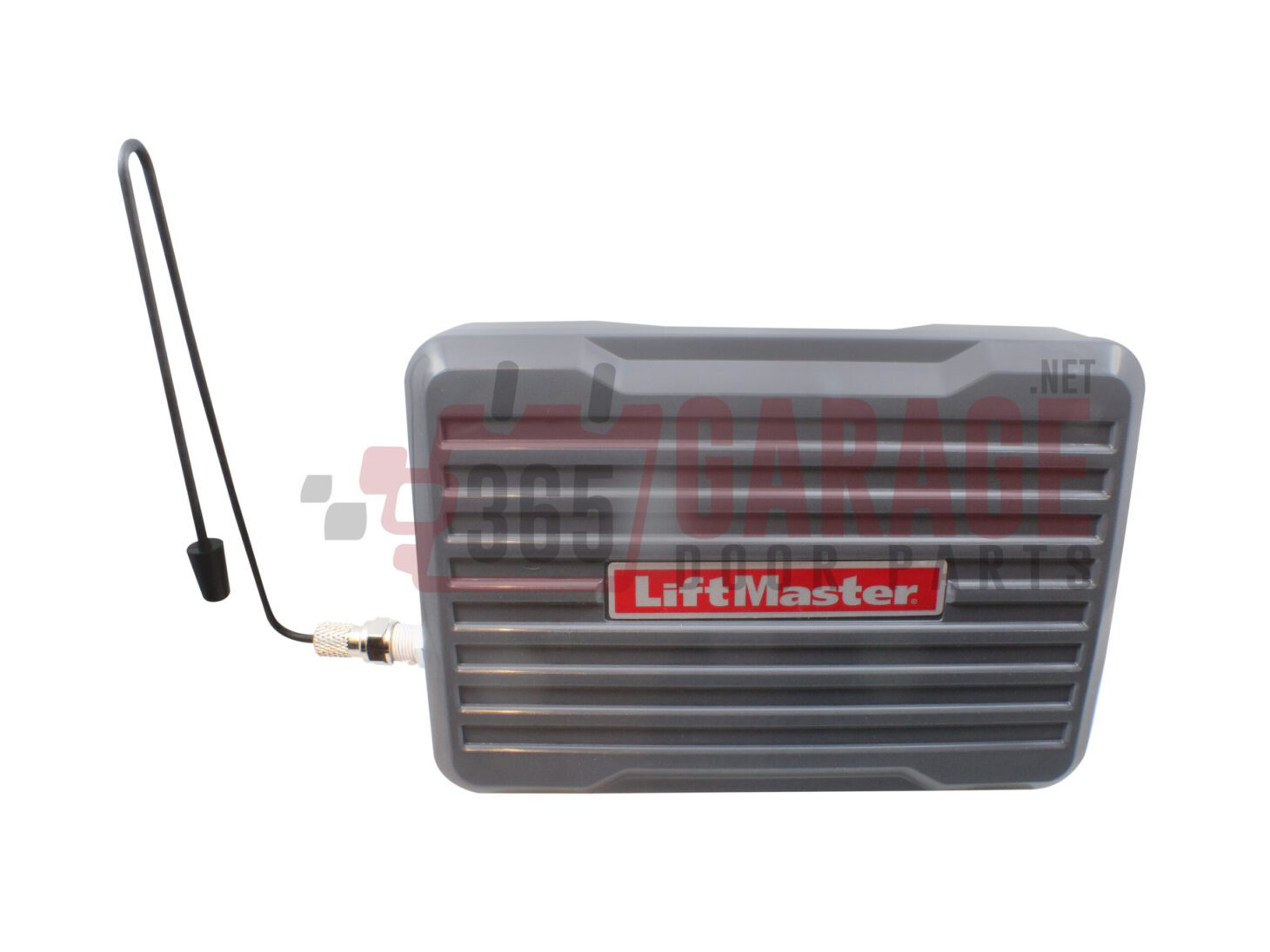

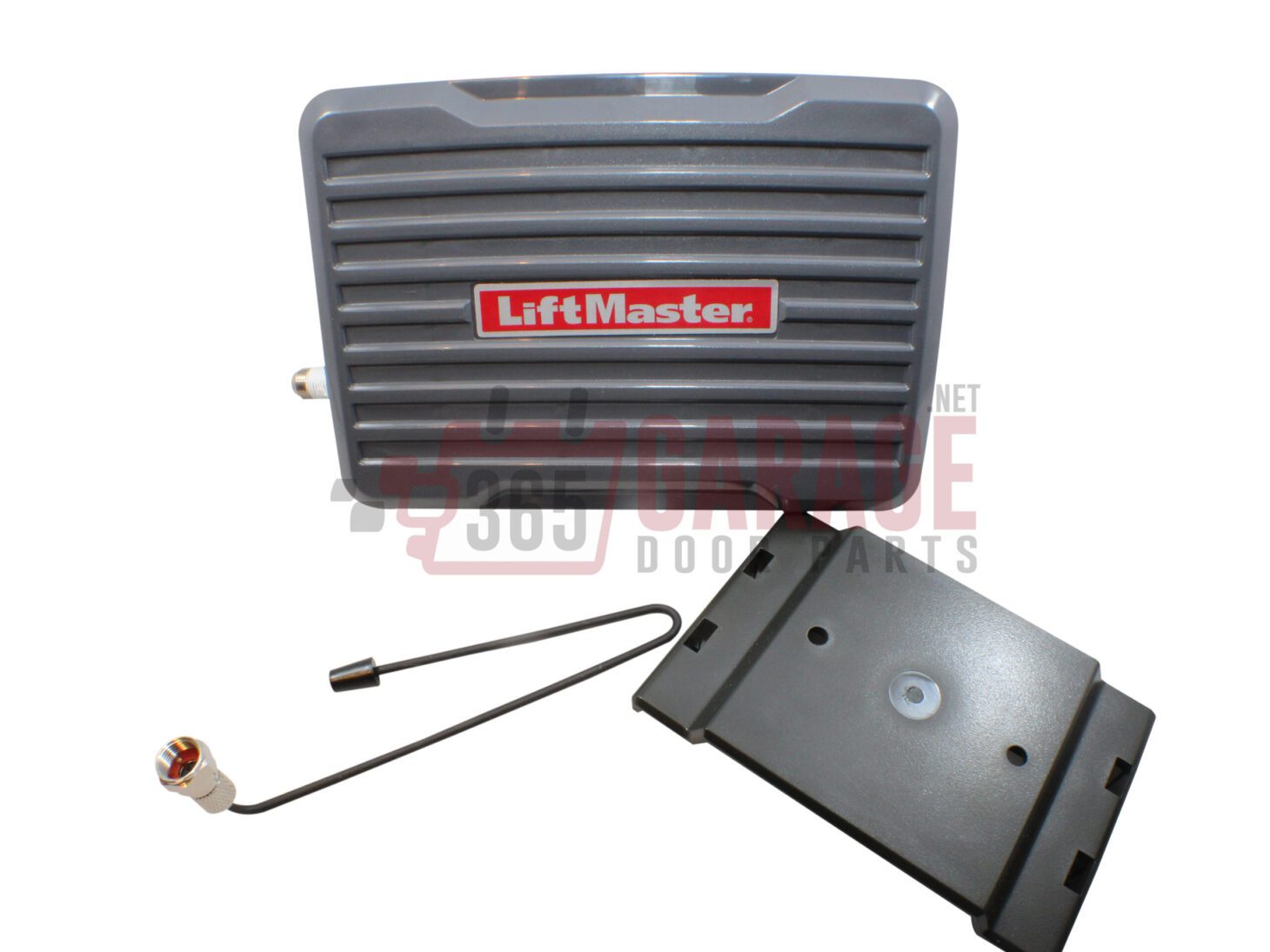

Liftmaster 860LM Universal Weather-Resistant Receiver

Liftmaster 860LM Universal Weather-Resistant Receiver

The Liftmaster 860LM Universal Weather-Resistant Receiver is the perfect transmitter for access to gated communities, industrial facilities, and commercial sites with one universal transmitter that allows you to operate multiple access points.  This compact receiver is compatible with 811LM, 813LM, and all MAX remote controls.  It operates on frequencies of 310 MHz, 315 MHz, and 390 MHz.  It is equipped with Security+ 2.0™ rolling code and Encrypted dip switches.

Designed for both gated communities and commercial buildings, the Universal Receiver and accompanying remote controls feature Security+ 2.0 TM technology. It utilizes a new, innovative and exclusive narrow band multi-frequency radio, which virtually eliminates radio interference, and eliminates customer call backs due to poor range performance. Property managers can support and manage multiple access points, such as the main gate, tenant and visitor doors, commercial doors, and even parking entrances, all with a single remote control solution that offers superior range and security.

• Weather-resistant for outdoor mounting requirements
• Provides convenient access to gated communities, industrial facilities, and commercial sites all with a single transmitter solution
• Three channels provide expanded remote control capacity: Channel 1 – 50 remotes, Channel 2 – 20 remotes, Channel 3 – 20 remotes
• Multiple remote control options available to provide secure access from the safety and convenience of a vehicle
• Compact design fits most gate and commercial door operators
• Compatible with 811LM, 813LM, and all MAX remote controls

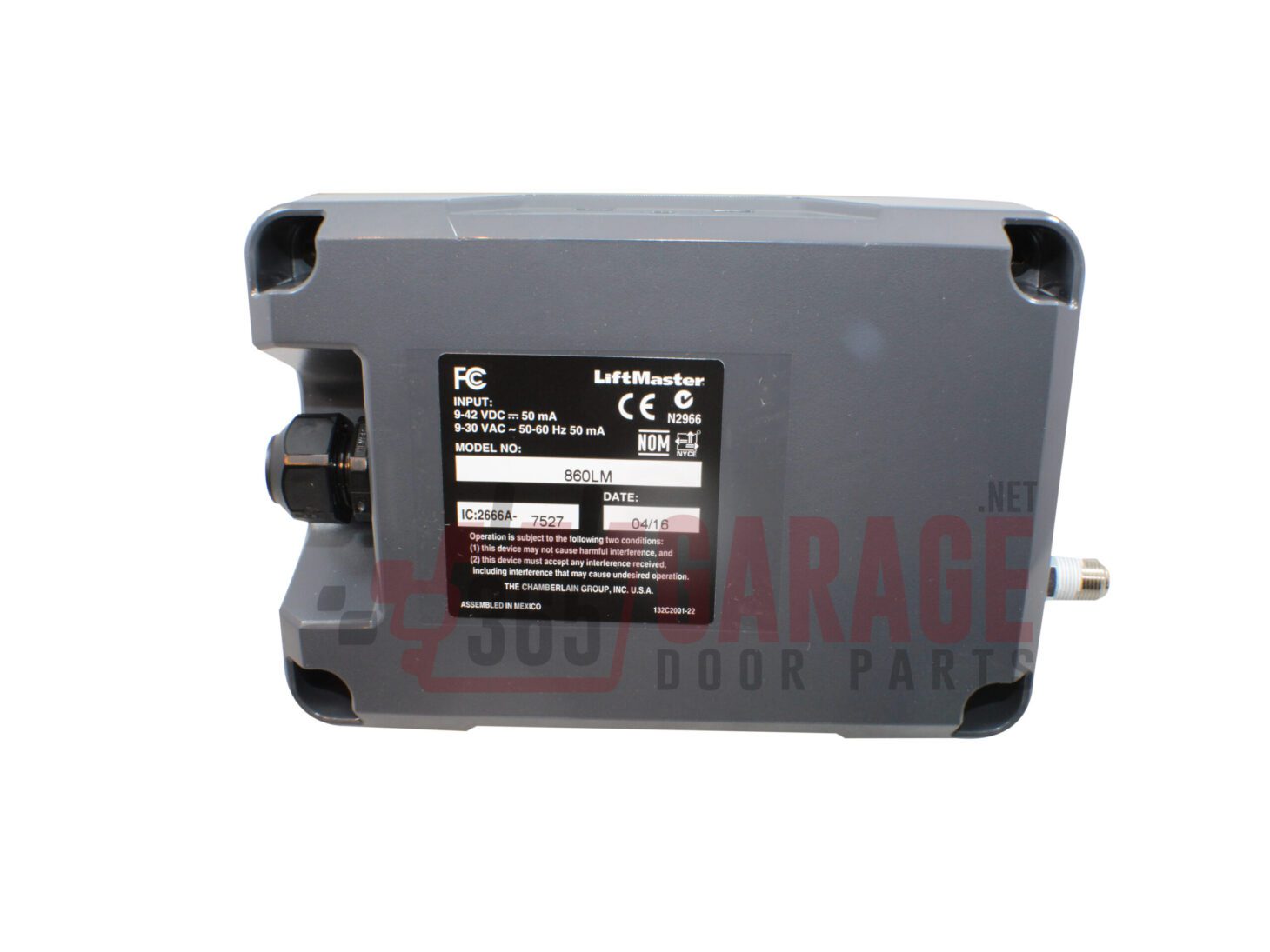

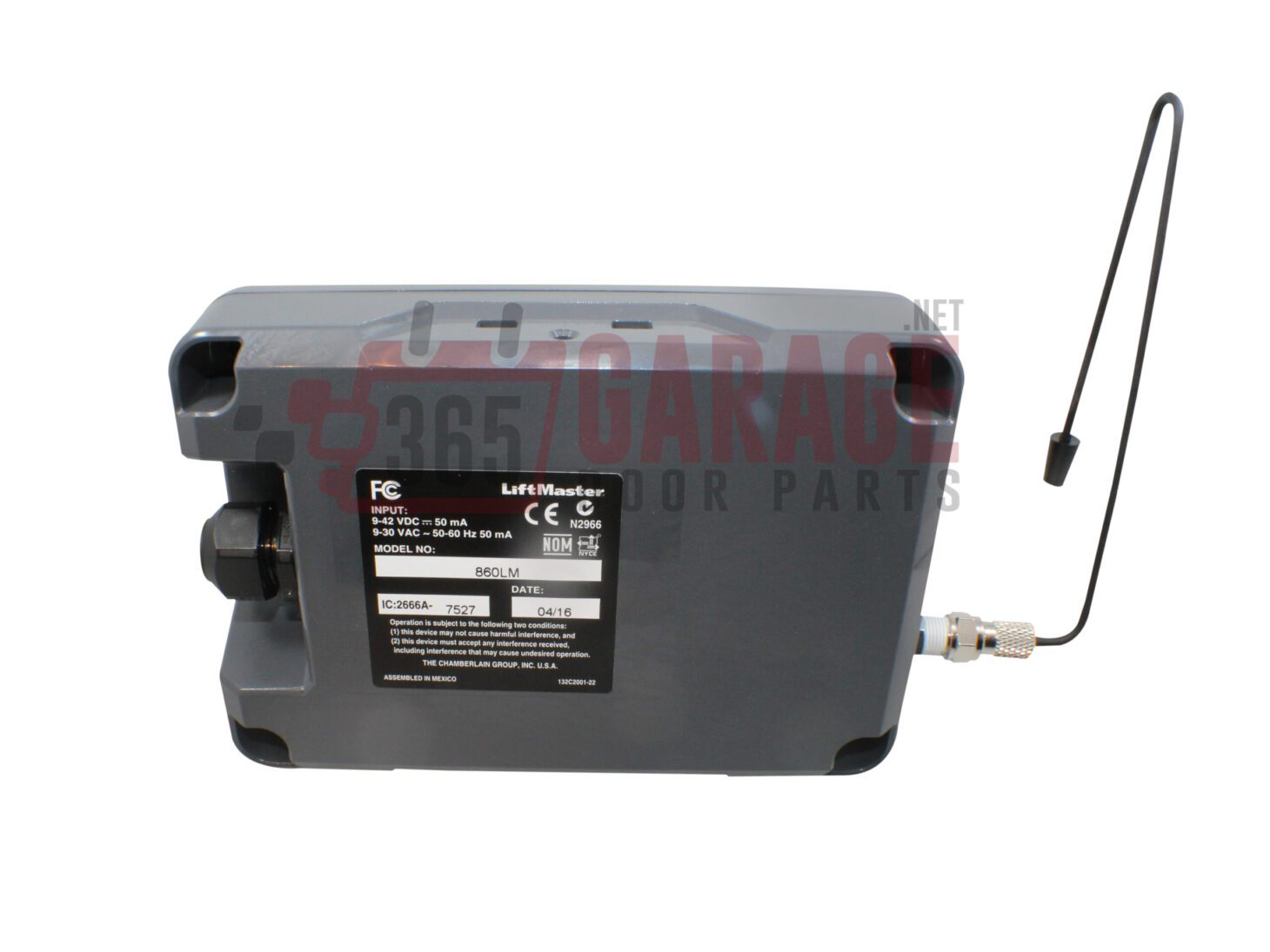

• Power: 12-24VDC or 12-24VAC

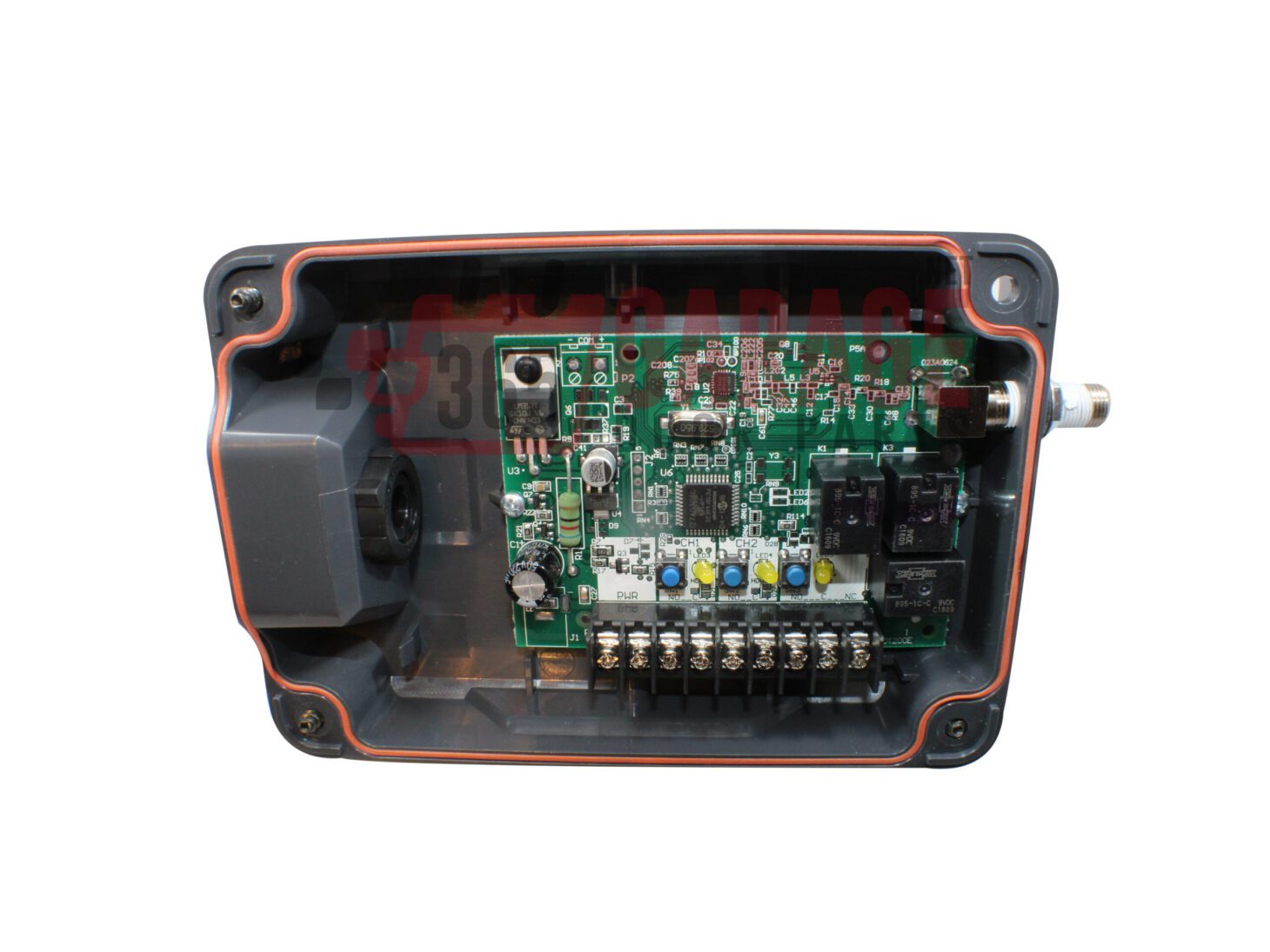

• Relay Outputs: Output channels – 1 FORM C and 2 FORM A relays
• Narrow-band on 310 MHz, 315 MHz, and 390 MHz Security+ 2.0® Rolling Code and Encrypted DIP
• Operational temperature from -35 to 65 degrees C; Storage temperature from -40 to 85 decrees C
• Compliant with FCC Part 15
• 1-year warranty
